mm mm

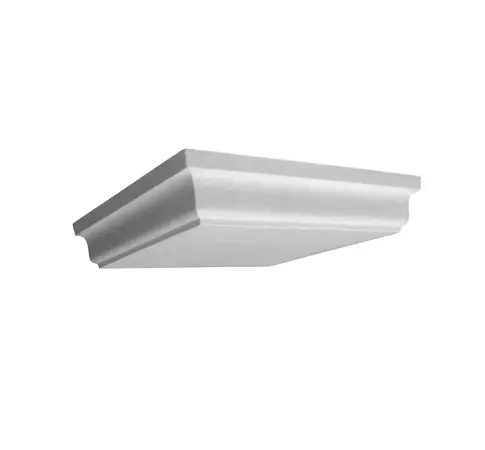

AAP1

ARCH PLINTH
Length at top - 200mm Width at top - 200mm Depth - 45mm Length at base - 170mm Width at base - 170mm

mm mm

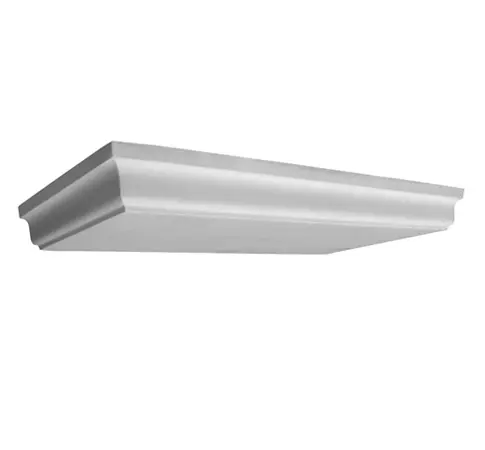

AAP2

ARCH PLINTH
Length at top - 380mm Width at top - 200mm Depth - 45mm Length at base - 350mm Width at base - 170mm Length at top 380mm, Width at top 200mm, Height 45mm, Length at base 350mm, Width at base 170mm

mm mm

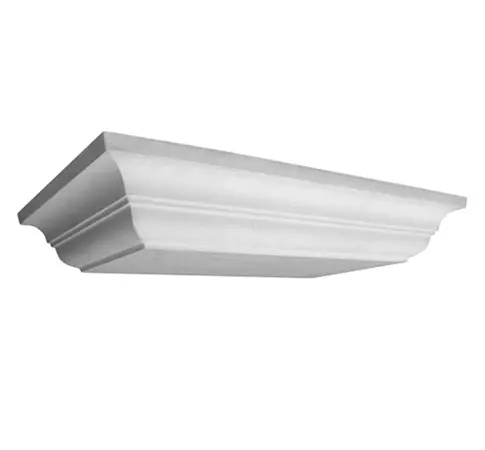

AAP3

ARCH PLINTH
Length at top - 385mm Width at top - 235mm Depth - 60mm Length at base - 290mm Width at base - 140mm

mm mm

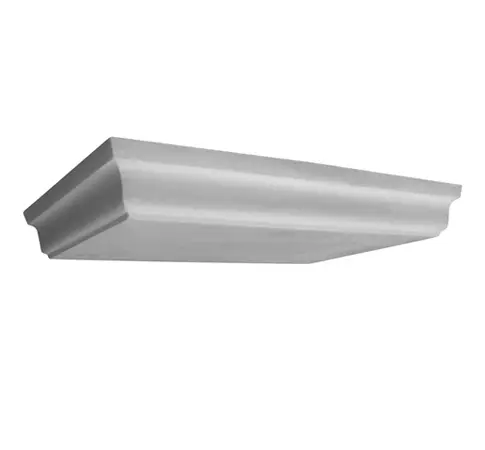

AAP4

ARCH PLINTH
Length at top - 300mm Width at top - 200mm Depth - 45mm Length at base - 270mm Width at base - 170mm

mm mm

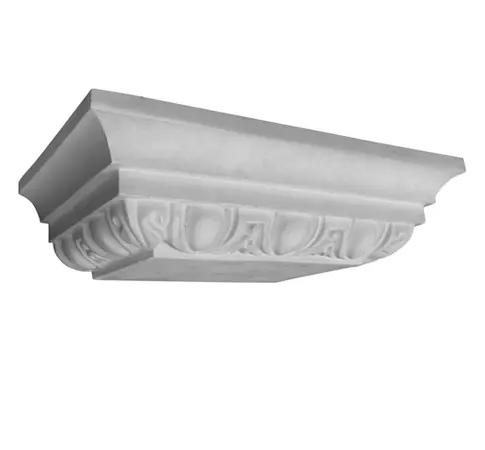

AAP5

ARCH PLINTH
Length at top - 370mm Width at top - 170mm Depth - 75mm Length at base - 170mm Width at base - 115mm

mm mm

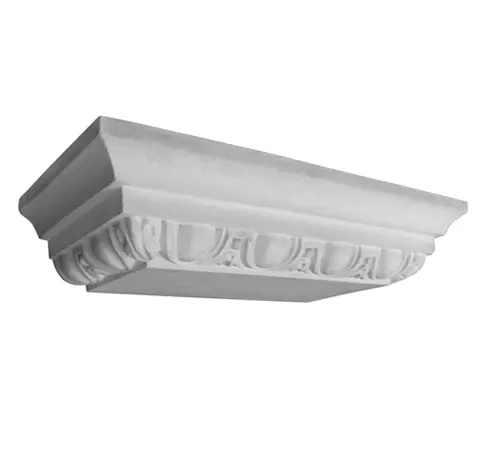

AAP6

ARCH PLINTH
Length at top - 370mm Width at top - 170mm Depth - 75mm Length at base - 250mm Width at base - 115mm

mm mm

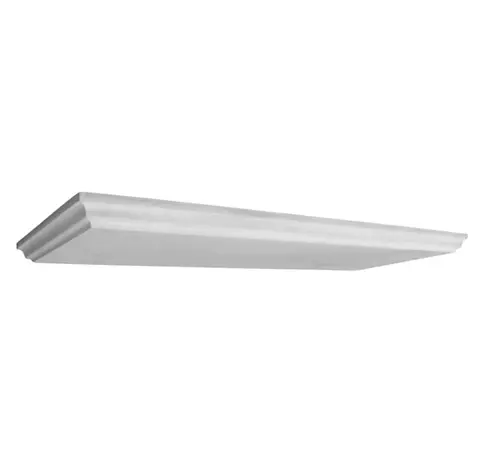

AAP7

ARCH PLINTH
Length at top - 645mm Width at top - 250mm Depth - 30mm Length at base - 610mm Width at base - 255mm

mm mm

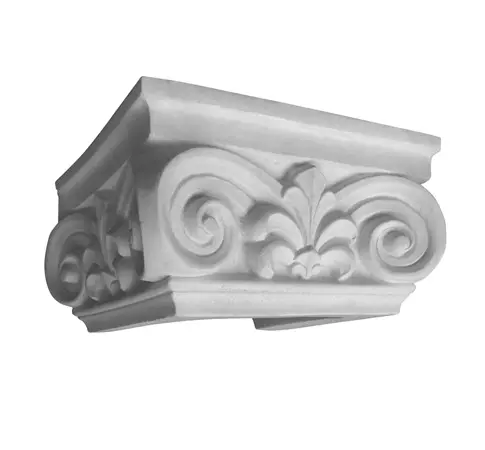

AAP8

ARCH PLINTH
Length at top - 210mm Width at top - 210mm Depth - 115mm Length at base - 160mm Width at base - 160mm TO SUIT WALL THICKNESS 120mm. Depth 130mm

mm mm

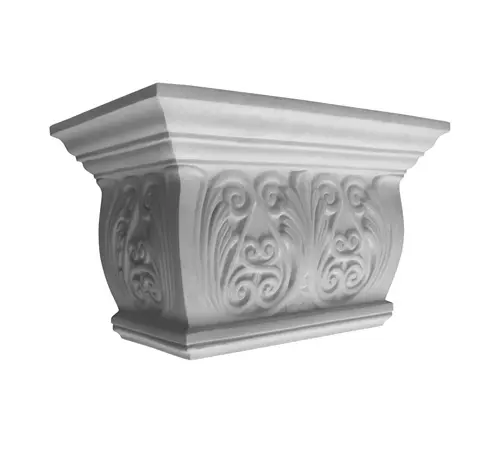

AAP9

ARCH PLINTH
Length at top - 420mm Width at top - 290mm Depth - 275mm Length at base - 310mm Width at base - 180mm TO SUIT WALL THICKNESS 270mm. Depth 160mm

mm mm

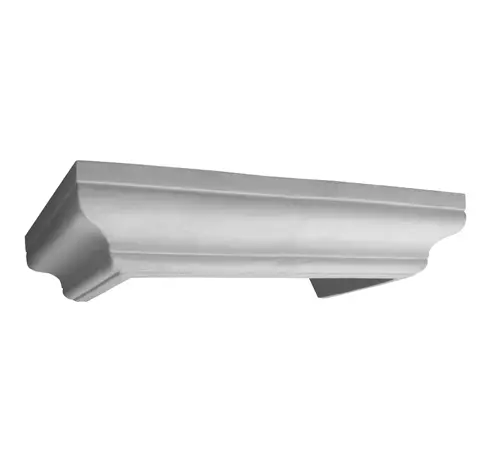

AAP10

ARCH PLINTH
Length at top - 280mm Width at top - 180mm Depth - 55mm Length at base - 215mm Width at base - 120mm To suit wall thickness 200mm X 110mm depth

mm mm

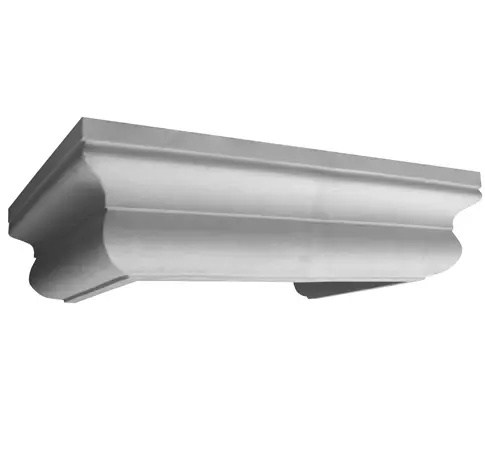

AAP11

ARCH PLINTH
Length at top - 390mm Width at top - 265mm Depth - 100mm Length at base - 300mm Width at base - 170mm To suit wall thickness 270mm X 160mm depth
